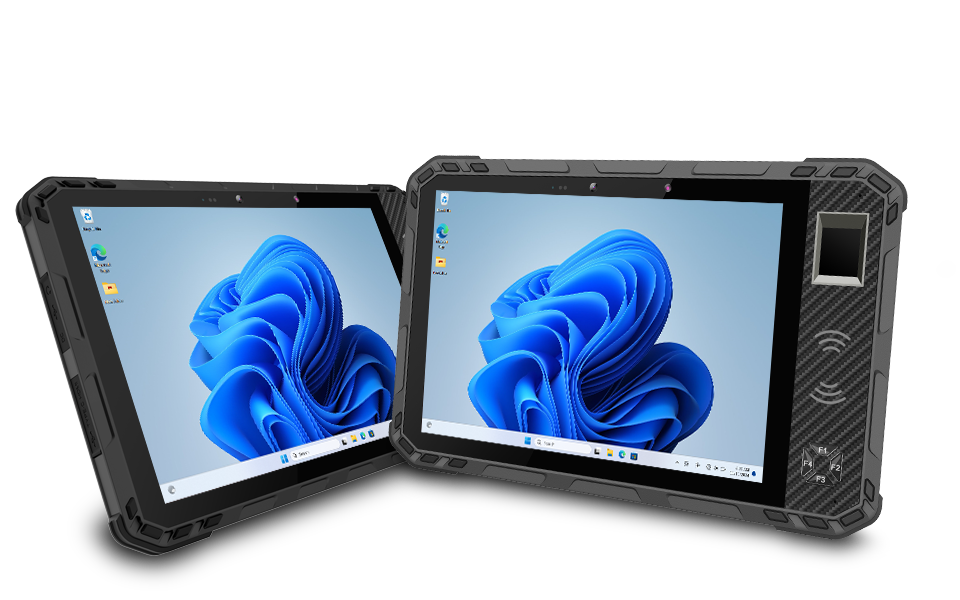

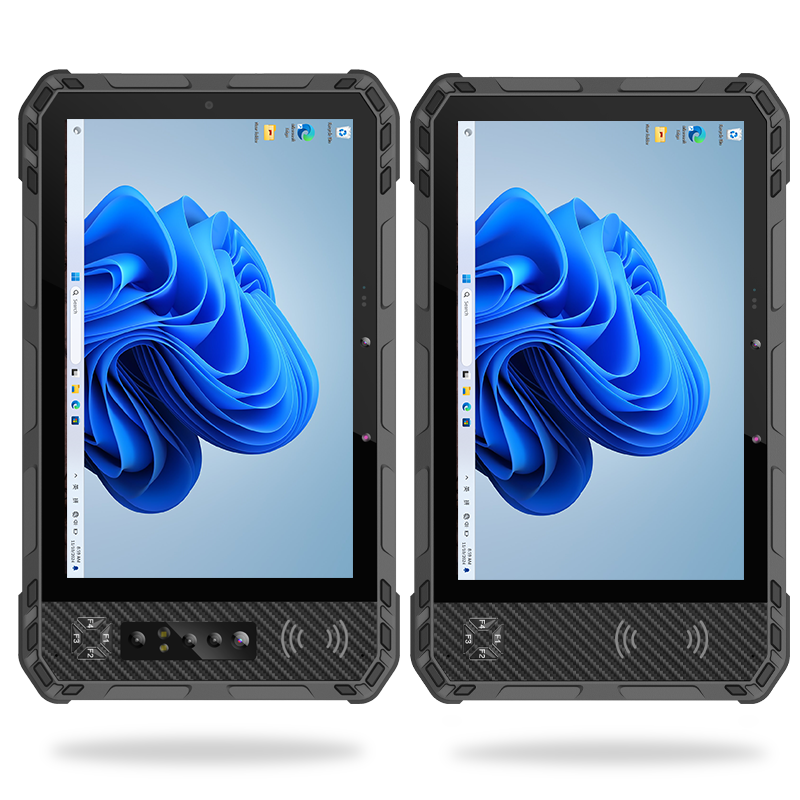

EV10 10.1-inch Windows Rugged Tablet

    10.1" Full HD Outdoor Display

    1920×1200 IPS display with optional 1000 nits high brightness, delivering excellent visibility even under strong sunlight — ideal for outdoor and industrial environments.

    IP68 Rugged Protection

    Certified with IP68 rating for water, dust, and drop resistance. Equipped with Corning Gorilla Glass and supports wet hand and glove touch — built for harsh conditions.

    High Performance with Windows OS

    Runs on a high-performance platform with Windows system. Optional 5G connectivity ensures fast and stable data transmission for industrial applications.

    10,000mAh Long-Lasting Battery

    Built-in large-capacity battery provides up to 10 hours of video playback, ensuring all-day operation for mobile workers.

    High-Resolution Camera Options

    Standard 5MP front + 13MP rear cameras, with optional upgrades to 8MP front and 20MP rear — ideal for photography, barcode scanning, and documentation.

    Customizable Physical Keys

    Features multiple physical buttons including PTT for push-to-talk and F1–F4 programmable keys, enhancing field operation efficiency and customization flexibility.


LEARN MORE
  • 10.1-inch big screen provides a clear, wide view


    10.1-inch ultra-HD large screen with a resolution of 1920x1200 displays work information perfectly. No need to zoom or drag—every detail and data is clearly visible. Say goodbye to fatigue and inefficiency; even complex charts and data can be handled with ease, precisely and efficiently

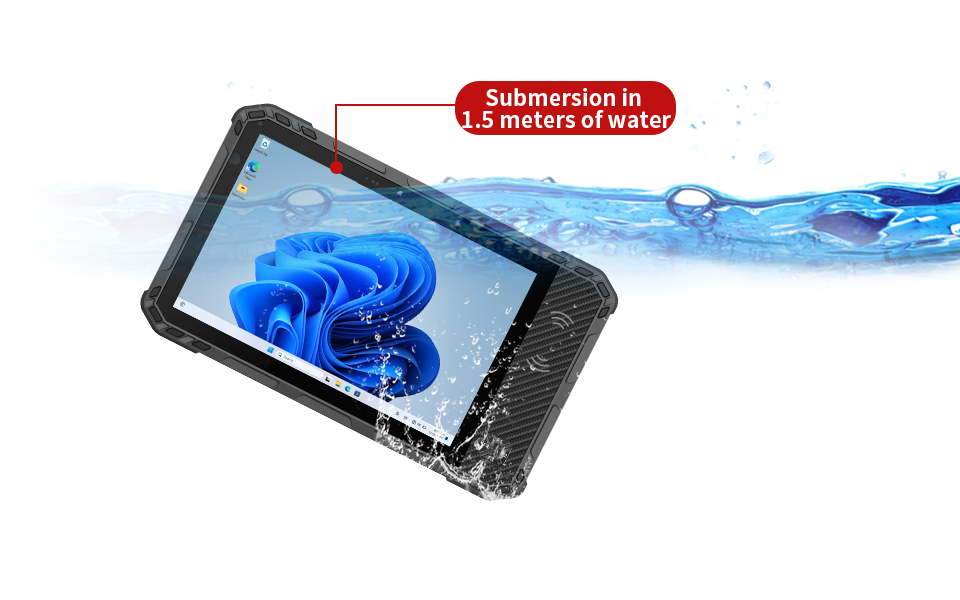

  • IP68 Professional-grade waterproof and dustproof


    The device interfaces are well-sealed, effectively

    withstanding harsh environments such as outdoor rain,

    snow, or sandstorms.

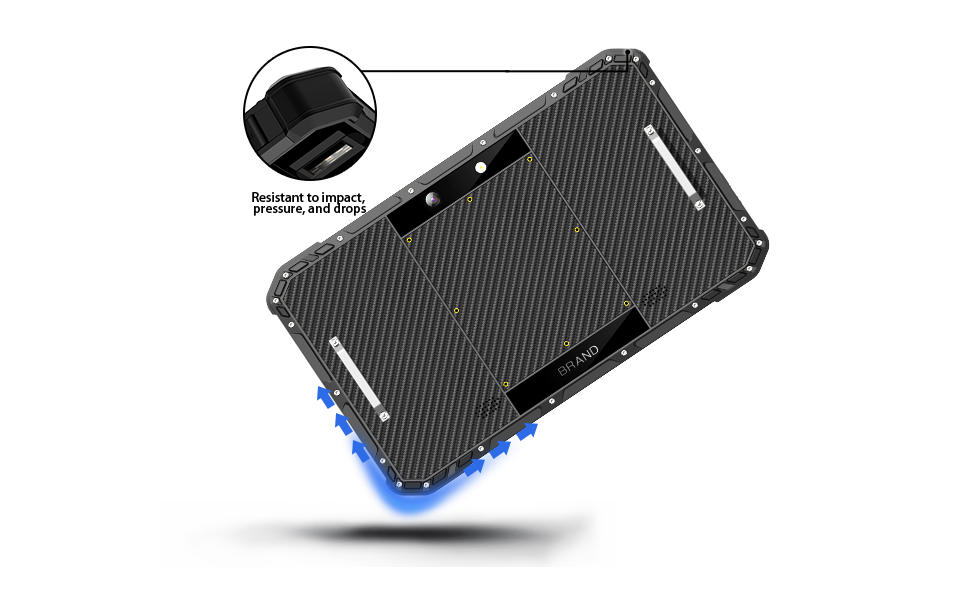

  • Customizable 1.5m-2m drop protection



    The device features a single or dual-color integrated shell design with excellent toughness, cushioning impact resistance, and enhanced durability. It is less prone to damage from accidental drops during outdoor use.



  • Supports three-in-one certification


    Supports fingerprint, ID card, and facial recognition features with fast scanning

    speed and high stability, completing data collection within 1-2 seconds.

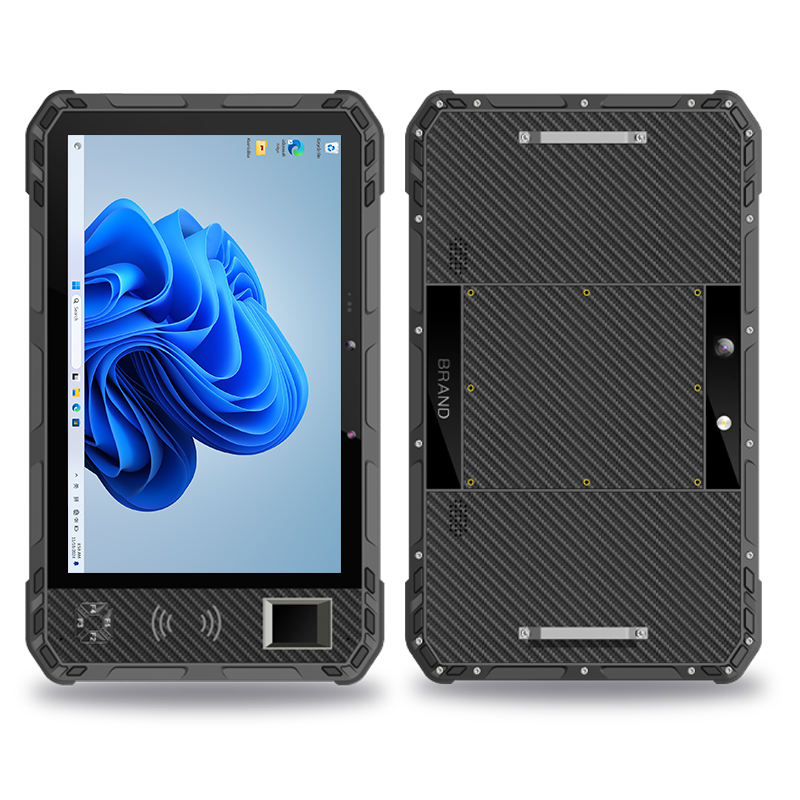

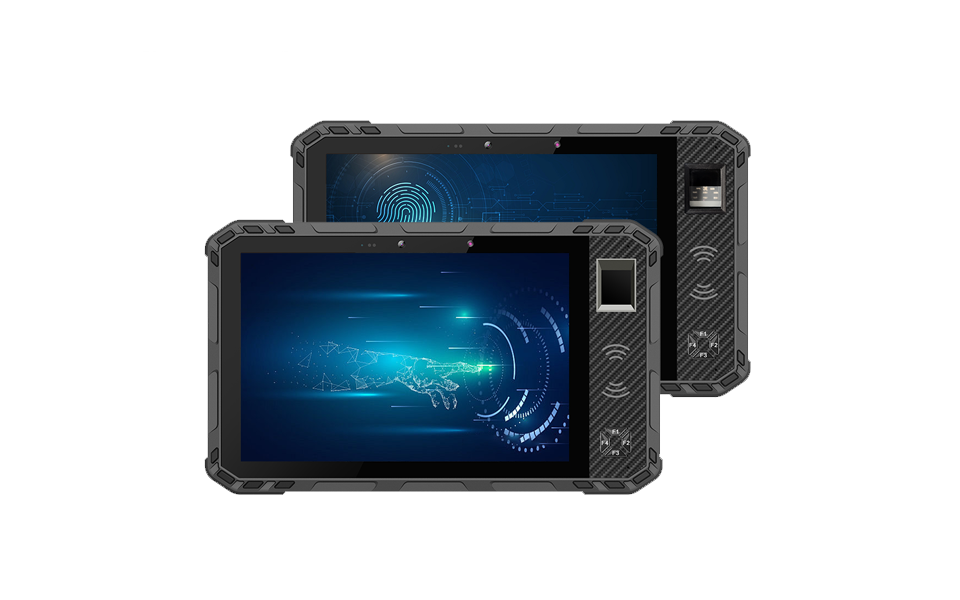

  • Fingerprint recognition compatible with capacitive and optical fingerprint sensors



    Supports fingerprint comparison technology for accurate and fast collection, recognition, and verification of user fingerprint information. High-resolution fingerprint imaging ensures superior anti-counterfeiting capabilities and exceptional security, effectively preventing fake fingerprints. Strong anti-interference performance allows use ins unlight with both dry and wet fingers, making it more flexible and convenient.

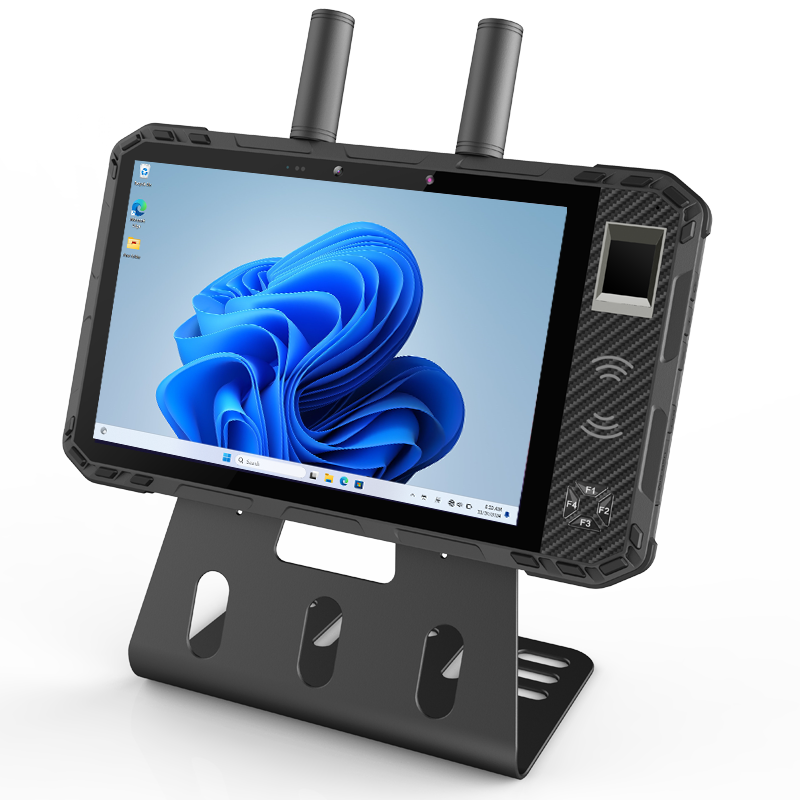

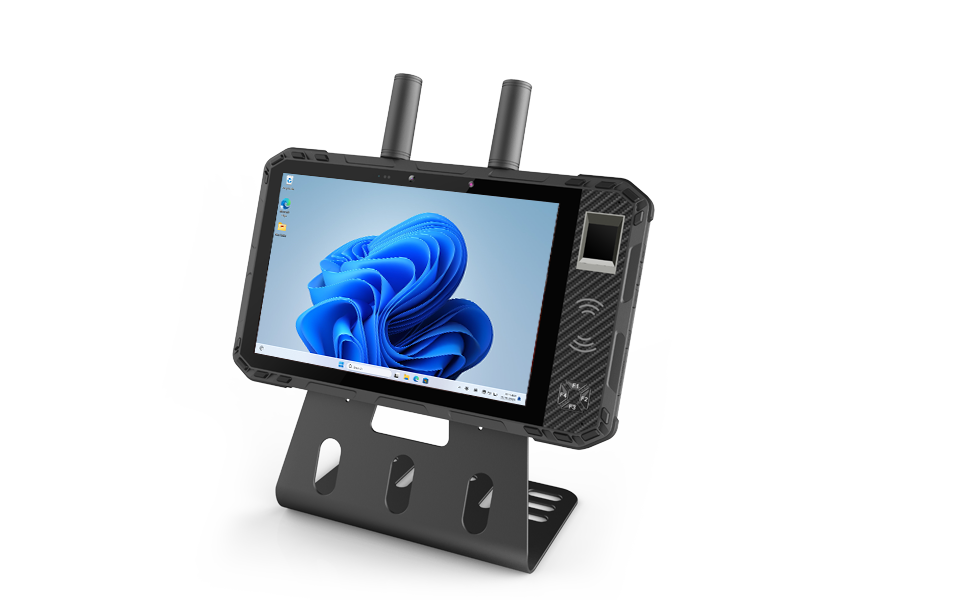

  • Vehicle and marine intelligent terminal with high-precision positioning and aviation connector interface.



    The smart terminal automatically collects data and uses multi-mode integrated navigation for precise positioning, meeting diverse user needs and ensuring accurate location even in urban or remote mountainous areas.

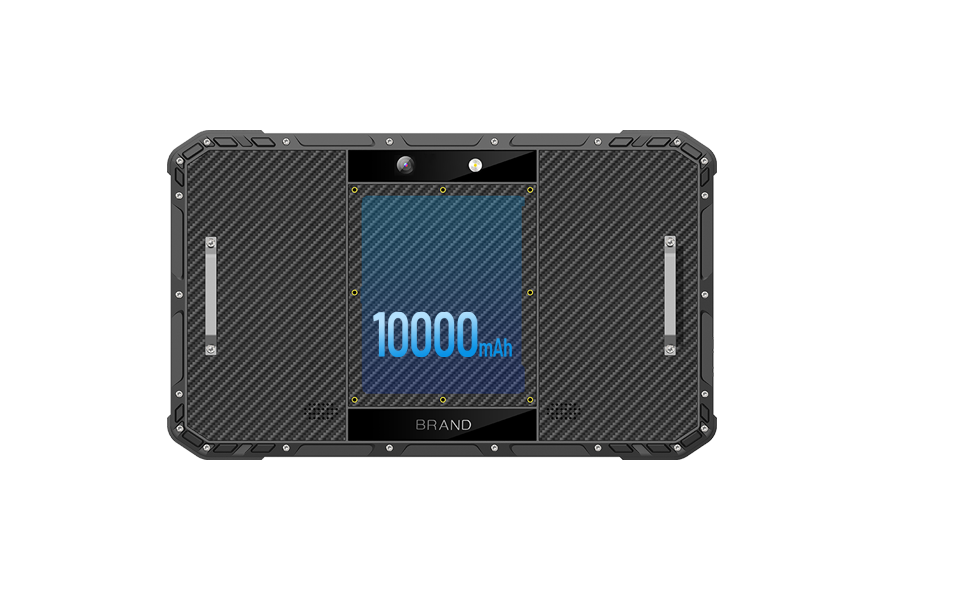

  • 10000mAh Large-capacity battery with extended standby time



    Equipped with a 10,000mAh lithium battery, featuring fast charging and intelligent power-saving management. It ensures high-intensity, all-day operation without worries.



  • Operation System
    OSWindows11
    GMS certifiedSupport
    CPU2.0 Ghz,MTK6762 processor Octa-Core
    Memory4 GB RAM / 64 GB Flash (6+128GB optional)
    Languages supportEnglish, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
    Hardware specification
    Screen Size10.1 inch color 1920 x 1200 display,up to 600 nits
    Touch PanelGorilla glass III with 5 points Capacitive Touch Screen
    Buttons / Keypad8 Function Keys: Power key, volume +/­-, return key, 4 custom key
    CameraFront 5 megapixels, rear 13 megapixels, with flash and auto focus function
    Indicator TypeLED, Speaker, Vibrator
    BatteryRechargeable li-ion polymer, 10000 mAh
    Communication
    Bluetooth®Bluetooth®4.2
    WLANWireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
    WWANGSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100 MHzLTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20)TDD-LTE (B38/B39/B40/B41)
    GPSGPS/BDS/Glonass, error range ± 5 m

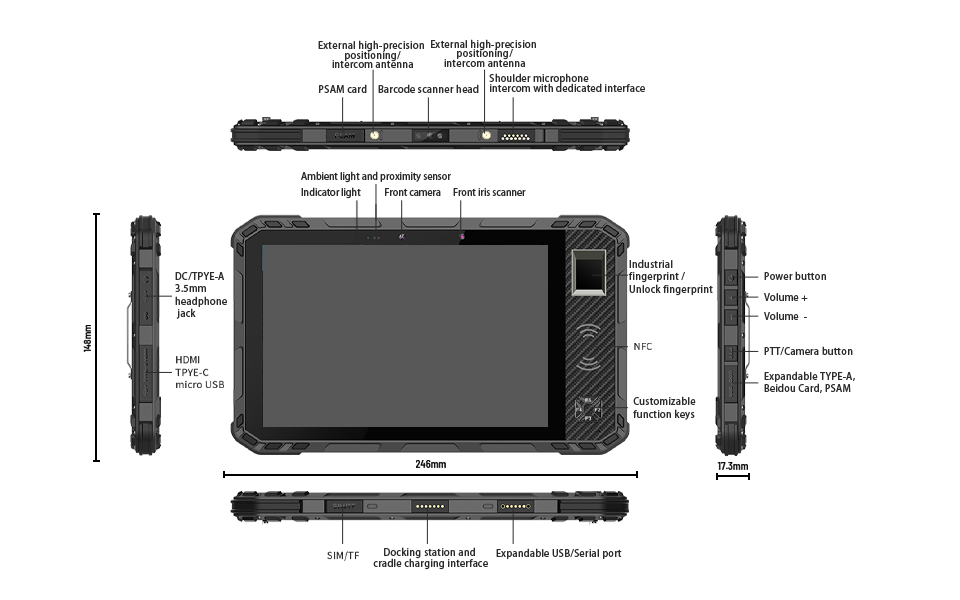

    I/O Interfaces
    USBUSB TYPE-C*1 ,USB TYPE-A*1

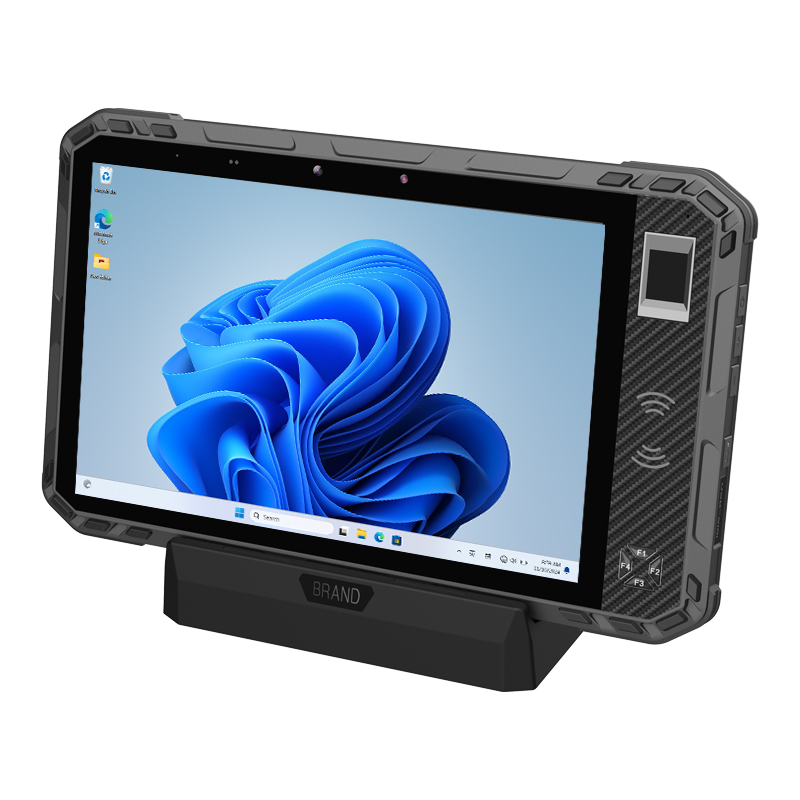

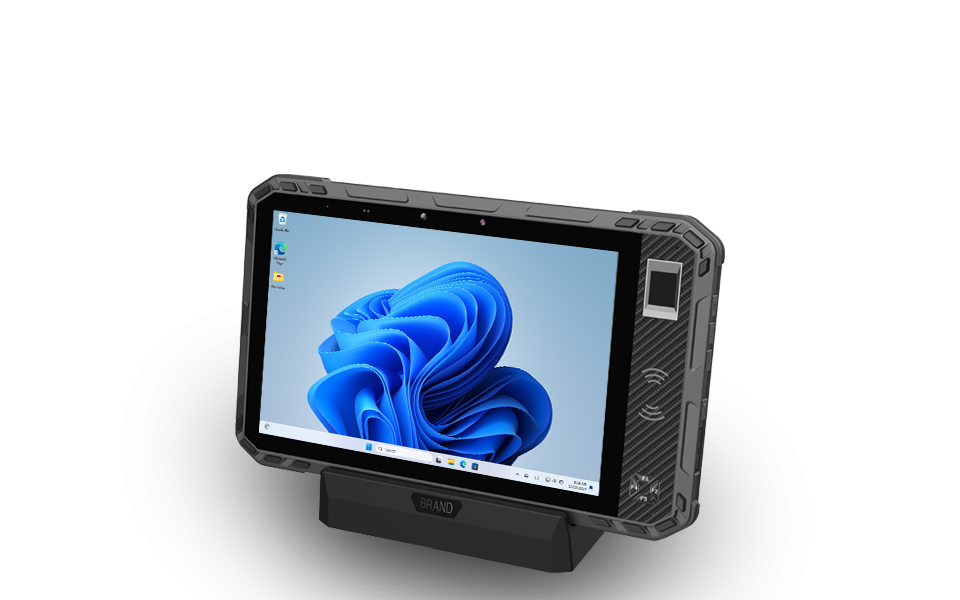

    POGO PINPogoPin bottom: Charging via cradle
    SIM SlotSingle SIM Slot
    Expansion SlotMicroSD, up to 256 GB
    AudioOne speaker with Smart PA (95±3dB @ 10 cm), One receiver, Dual noise-cancelling microphones
    RJ 45Optional
    HDMIOptional
    CAN BUSOptional
