10.1” Full HD IPS Display
1920×1200 resolution with wide 16:10 aspect ratio; optional 1000-nit high brightness for outdoor visibility.
IP65 Rugged Protection
Fully sealed design for water, dust, and impact resistance — perfect for harsh industrial and outdoor environments.
Android 14 Operating System
Runs the latest Android OS for improved performance, security, and compatibility with modern enterprise apps.
High-Capacity 10,000mAh Battery
Built-in polymer lithium battery delivers up to 10 hours of operation; optional removable battery available.
Enhanced Physical Interface
Equipped with multiple hardware buttons (Power, Volume, PTT, F1–F4) for quick control in demanding field scenarios.
| Model | EV10 | |
|---|---|---|

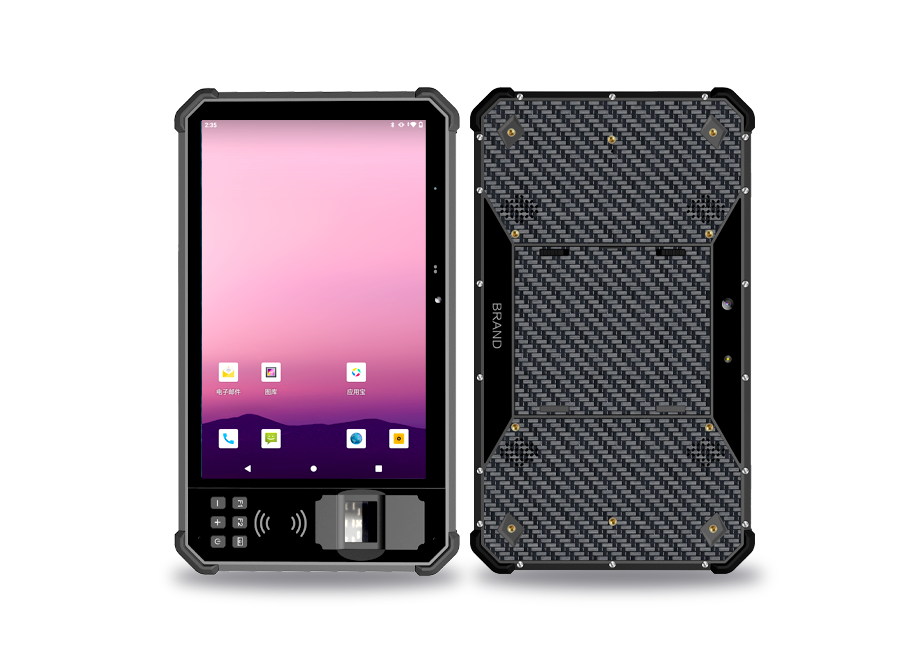

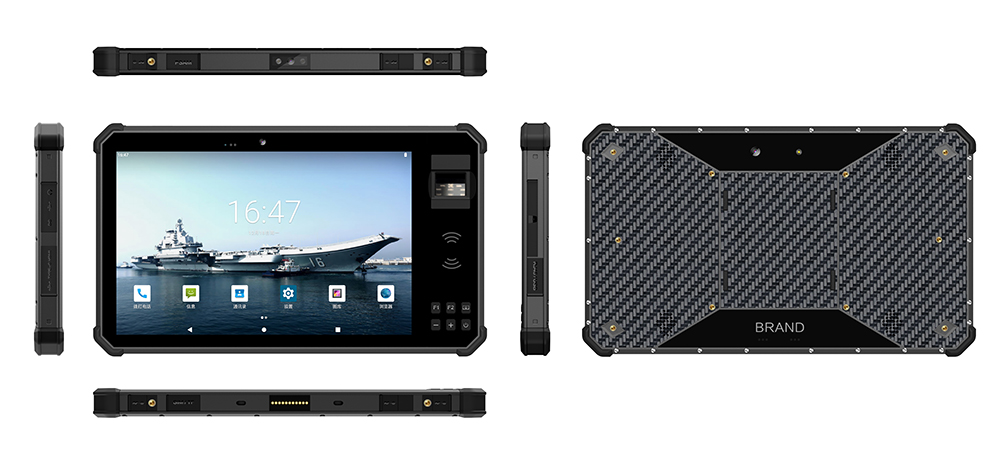

| Product pictures |  | |
| Product Appearance | ||
| Type | Details | Standard Configuration |
| Product Form | Product Form | rugged tablet |
| Dimension | 292*171.5*20mm | |
| Weight | 1.1Kg TBD | |
| Product Color | black. | |
| LCD | Screen Size | 10.1 inch 16:10 |
| Resolution | 1280*800 | |
| Brightness | 500Nit | |
| TP | Touch panel | 10 touch capacitive screen, Corning gorilla glass |
| Camera | Front | 5MP |
| Rear | 12MP | |
| Speaker | Built-in | Built-in 8 Ω/1W waterproof speaker X 2 |
| Microphone | Built-in | High sensitivity: -28± 2D ×1 |
| Key | Power,、V+、V-、PTT,、F1、F2、F3、F4 | |
| Battery(tablet) | Type | Built-in pure cobalt battery |
| Capacity | 3.8V/10000mAh | |
| Endurance | 12H (70% volume, 70% lumen brightness, 1080 HD video) | |
| System Hardware Configuration | ||
| Type | Details | Descriptions |
| CPU | Type | MTK8788 |
| Speed | 2.0GHz | |
| RAM | LPDDR3 | 8GB |
| ROM | Emmc | 64GB |
| G_sensor | Built-in | support |
| Light sensor | Built-in | support |
| geomagnetic sensor | Built-in | support |
| gyroscope | Built-in | support |
| Internet Connections | ||
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G MT6631 (WIFI 5) |
| Bluetooth | Built-in | BT5.0 (BLE) class 1 Transmission distance ：10m |
| 4G | Built-in | WCDMA：1/2/4/5/8 TD-SCDMA：B34/B39 TDD：34/38/39/40/41 FDD；1/2/3/4/5/7/8/12/17/19/20/26/28a/28b |
| GPS | Built-in | Beidou+GPS+glonass，support A-GPS |
| NFC | Built-in | NFC 13.56MHz support ISO/IEC 下14443A/14443B |
| Data collection | ||
| Type | Details | Descriptions |
| fingerprint identifier | Built-in | FAP20 Optical Fingerprint Model：AGF200 manufacturer：Shenzhen Zhiang Technology Co., Ltd. |
| I/O Ports | ||
| Type | Details | Descriptions |
| TF Card | Extending external storage | TF x1 max：512G |
| SIM Card | SIM port | SIM x1 |
| USB port | Extending external storage and data exchange | USB2.0*2（ Type-A*1、Type-C*1） |
| Earphone Jack | audio output | ∮3.5mm standard earphone jack x |
| DC jack | power | DC 5V 3A ∮3.5mm DC jack x1 |
| Standard Accessories | ||
| Type | Details | Descriptions |
| Type-C cable | Type-C cable | *1 |
| Operating instruction | Operating instruction | *1 |
| wrist strap | wrist strap | *1 |
| Adapter | Standard | AC100V to 240V, 50Hz or 60Hz output DC 5V/3A |
| Software Configuration | ||
| Type | Details | Descriptions |
| Operation System | Operation System Version | Android:14 （Remove Google apps） |
| Product Certificate | ||
| Type | Details | Descriptions |
| Certificates System | IP68 | certified |
| Drop test | certified | |
| Battery | UN38.3，MSDS,Aviation, Maritime Reports | |
| Reliability | ||
| Type | Details | Descriptions |
| Product reliability | Falling height | from 120cm height to wooden floor with booting status |
| Working temperature | ’－20℃～60℃ | |
| Storage temperature | ’－40℃～70℃ | |
| Humidity | Humidity: 95% Non-Condensing | |
